Illuminating the Path: Mastering LED Street Light Lens Angles for Optimal Applications

LED street lights have transformed urban landscapes, delivering unmatched energy efficiency and lifespan over traditional lighting. Yet, their true potential is unlocked only when paired with the correct lens angle . This critical component dictates light distribution, directly impacting visibility, safety, uniformity, and glare control. In this guide, we demystify LED lens angles and provide actionable insights for selecting the optimal solution across diverse environments—ensuring your projects achieve peak performance, compliance, and community satisfaction.

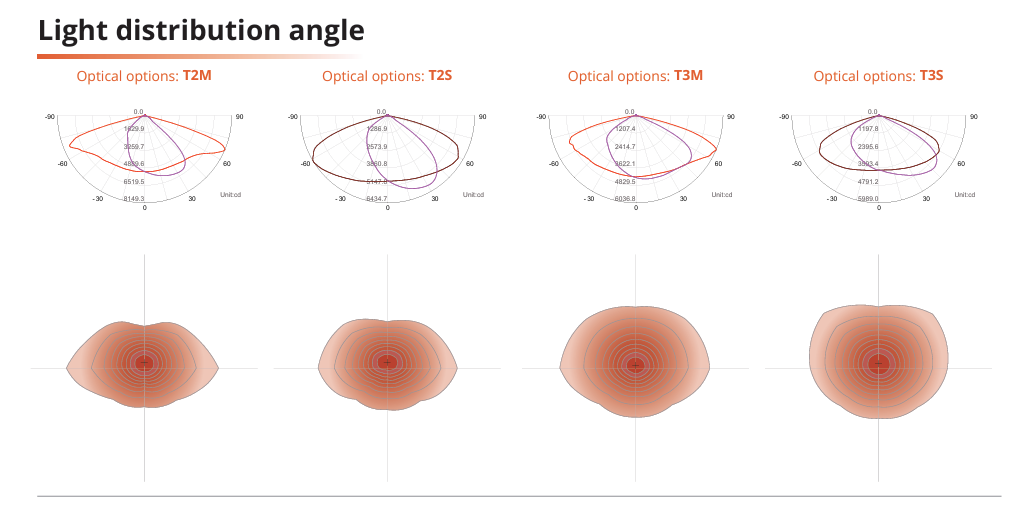

1: Lens Angle Light Distribution Visual

Caption: Visualizing Beam

Spread: Narrow (15-30°),

Medium (45-60°),

Wide (90-120°), and Asymmetric patterns.

Narrow beams focus intensity; wide beams maximize coverage.

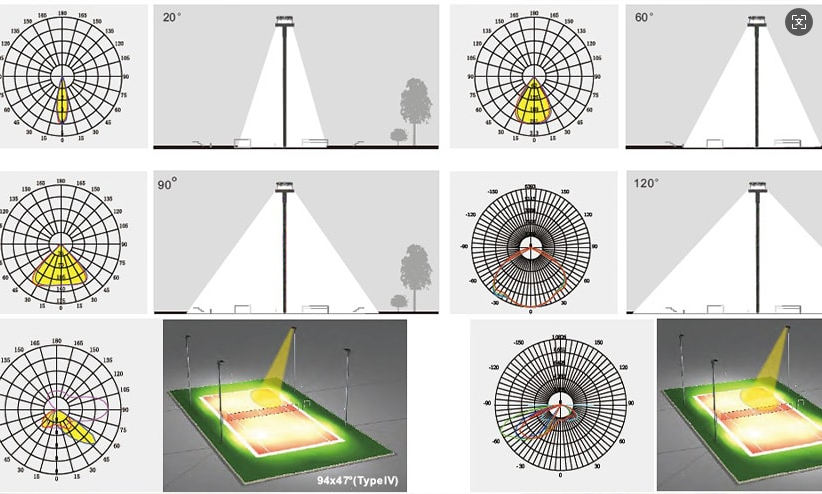

Understanding Lens Angles: The Science of Light Control

The lens angle (measured in degrees) defines the vertical and horizontal spread of light from the LED. It’s the cornerstone of optical efficiency:

Narrow Beam (15-30°): High-intensity, focused illumination. Best for precision tasks or tall poles.

Medium Beam (45-60°): Balanced intensity and coverage. The versatile choice for most roads.

Wide Beam (90-120°): Broad, uniform distribution. Ideal for low-height poles or wide areas.

Asymmetric Beam: Directional light, minimizing spill into properties while maximizing road coverage.

Key Insight: A narrower angle increases lux (brightness) but reduces coverage. Wider angles enhance uniformity but require careful spacing.

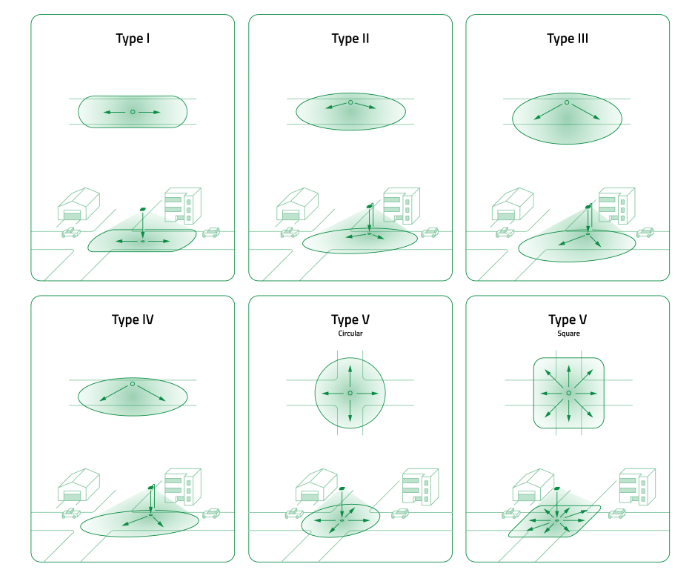

NEMA Beam Spread Classifications

Application-Specific Lens Angle Recommendations

Selecting the right angle hinges on four factors: road width , pole height , pole spacing , and safety standards (e.g., IESNA RP-8). Here’s your decision framework:

Challenge: High-speed safety requires intense, uniform light with minimal glare.

Solution: Medium Beam (45-60°) or Asymmetric lenses .

Why? Concentrates light on travel lanes, reduces spill into drivers’ eyes, and works optimally at heights >10m. Avoid wide angles—they waste energy and create dark spots between poles.

Challenge: Balance pedestrian safety, neighbor comfort, and low light pollution.

Solution: Wide Beam (90-120°) .

Why? Maximizes uniformity at lower pole heights (6-8m), eliminates harsh shadows, and minimizes trespass into homes. Pair with shielded fixtures for Dark-Sky compliance.

Challenge: Ensure obstacle visibility and user comfort without overlighting.

Solution: Medium-Wide Beam (60-90°) .

Why? Covers winding paths effectively, adapts to tree cover, and provides sufficient ground-level lux. Avoid narrow beams—they create "tunnel vision."

Challenge: Eliminate dark zones for security while maintaining even coverage.

Solution: Wide Beam (90-120°) .

Why? Achieves uniform illuminance (min 10-20 lux) with fewer poles. Use lighting design software to model spacing/height ratios and avoid overlighting.

Narrow Beam in Action

Caption: Focused Efficiency: 45° lenses on a highway. Note the concentrated light on lanes, minimal spill, and reduced glare for drivers.

Wide Beam Residential Solution

Caption: Uniform Comfort: 120° lenses lighting a residential street. Even coverage, soft shadows, and minimal trespass into yards.

Beyond Angle: Lens Material & Optical Design

Angle is just the start. Superior performance demands:

Materials: Polycarbonate (impact-resistant) or PMMA (UV-stable) for >92% light transmission.

Optics: TIR (Total Internal Reflection) lenses outperform reflectors. They offer precise beam control, reduce stray light, and boost efficiency by 10-15%.

Pro Tip: Specify anti-glare micro-prismatic textures to cut veiling luminance.

Avoid These Critical Mistakes

Poor lens selection leads to:

Glare & Disability: Narrow angles on low poles blind drivers/pedestrians.

Hotspots & Shadows: Mismatched angles create uneven light, compromising safety.

Energy Waste: Over-lighting (too narrow) or over-spacing (too wide) inflates costs.

Light Trespass: Unshielded wide beams flood adjacent properties—triggering complaints.

Conclusion: Precision Illumination, Optimized Results

Choosing the optimal lens angle isn’t just technical—it’s strategic. It determines project success, public safety, and cost efficiency. By aligning beam spread with environmental demands, you transform ordinary lighting into intelligent urban infrastructure .
